Pressure Switch LF5510
You are here: Home » Products » Water Treatment Components » Pressure Switch LF5510

PRODUCT DETAIL

loading

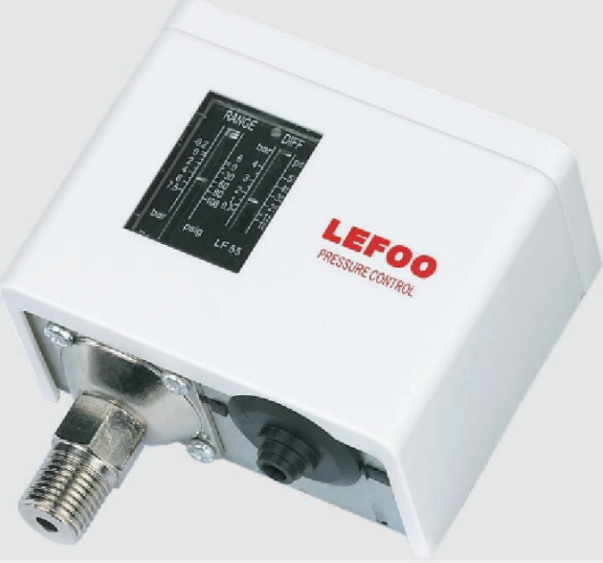

Pressure Switch LF5510

Availability:
Inquire

sharethis sharing button

  Product Images


Pressure Switch


  Model


technical parameter

model:

LF5510

Pressure factory setting:

6 bar off, 5 bar on,

Pressure range:

1- 10 bar，

Differential pressure range:

1- 3 bar，

Maximum working pressure:

16.5 bar，Differential pressure can be adjusted,

Electrical parameters

Rated current (A) / rated voltage (V):

125VAC

250VAC

24VDC

Full load current:

20A

10A

8A

Instantaneous current:

72A

72A

64A

temperature:

-20~110℃

Package

Package Size:

12.3*9.5*6.9cm


  Our Servi

  Application


LF55 series pressure switches are usually used to control the pressure of compressors in refrigeration systems. This switch is suitable for controlling gas, water and oil pressure in addition to refrigerants. The internal micro switch structure ensures good performance of the switch, and the switch is equipped with a standard mounting bracket.
