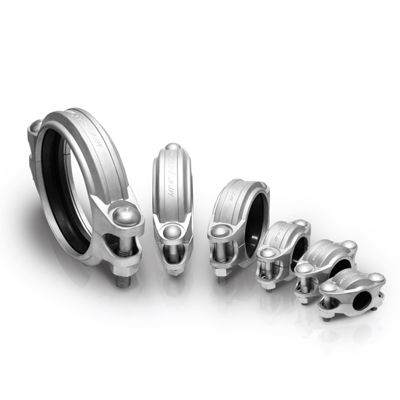

PRODUCT IMAGES

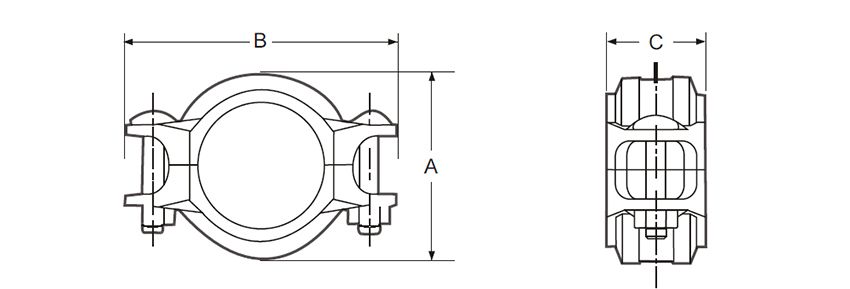

PRODUCT SPECIFICATION
PRODUCT ADDVANTAGE
Coupling Housings: stainless steel and ductile iron,bothwithstands high-pressure and high-impact. |
|
C oatings: be applied to various couplingsfiftings and acessories,thickness should not exceed 0.01". |
CHARACTERISTICS
Housings:
Type 304 Stainless steel to ASTM A351 CF8 or A743 Gr. CF8
Type 316 to ASTM A743 CF8M
Type 316L to ASTM A743 CF3M
CE8MN to ASTM A890 Grade 2A
Austenic 904L(CN2MCuN) to A351
Duplex 2205 (CD3MN) to ASTM A890 Grade 4A
Super duplex 2507(CE3MN) to ASTM A890 Grade 5A
Austenic 254SMO(CK3MCuN) to A743
Rubber Gaskets:
The gasket seals is C-shaped, made of standard gasket EPDM (ethylene
propylene diene monomer) for cold water, hot water, rare acid, oilfree
air and multiple chemical product (-50~150 ).It is not suitable
for medium like petroleum.
Bolts&Nuts:
Type 304 stainless steel track bolts and nuts to ASTM F-593
Type 316 stainless track bolts and nuts to ASTM F593
Type 316 stainless track bolts to ASTM A193 B-8M with silicone
bronze heavy duty nuts to ASTM B98 C65 100
