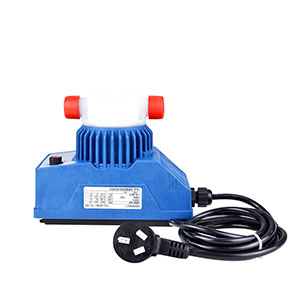

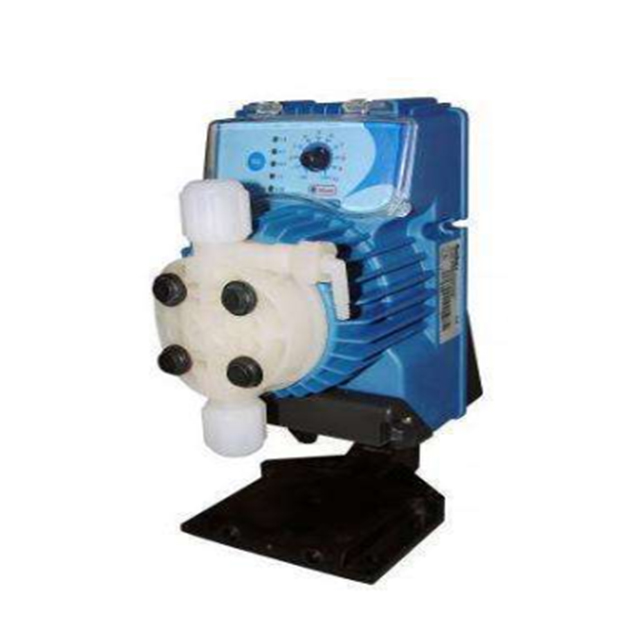

Product Images

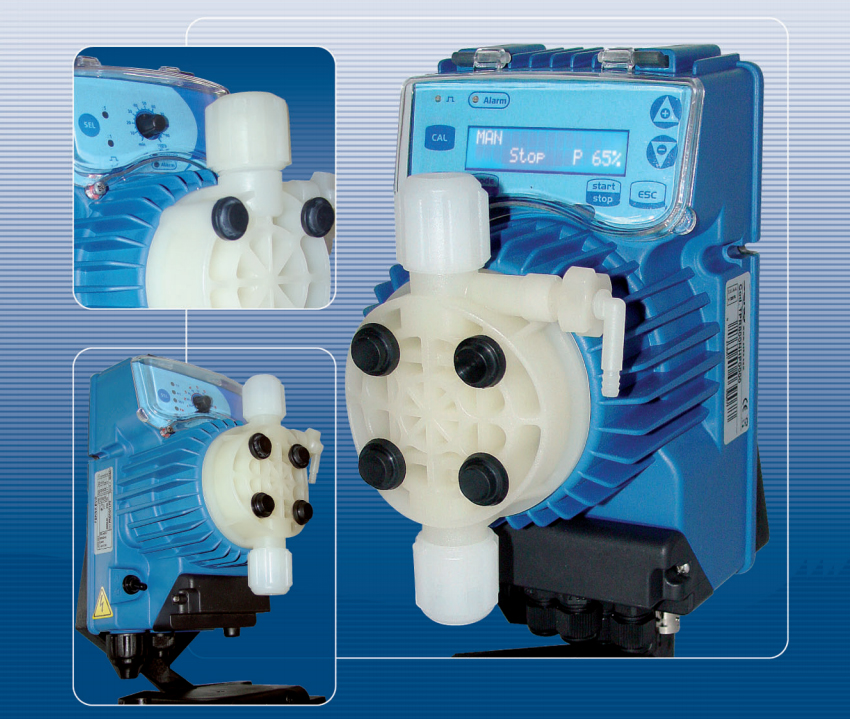

Household Pump Product Images
Product Features
Product Features
Produ

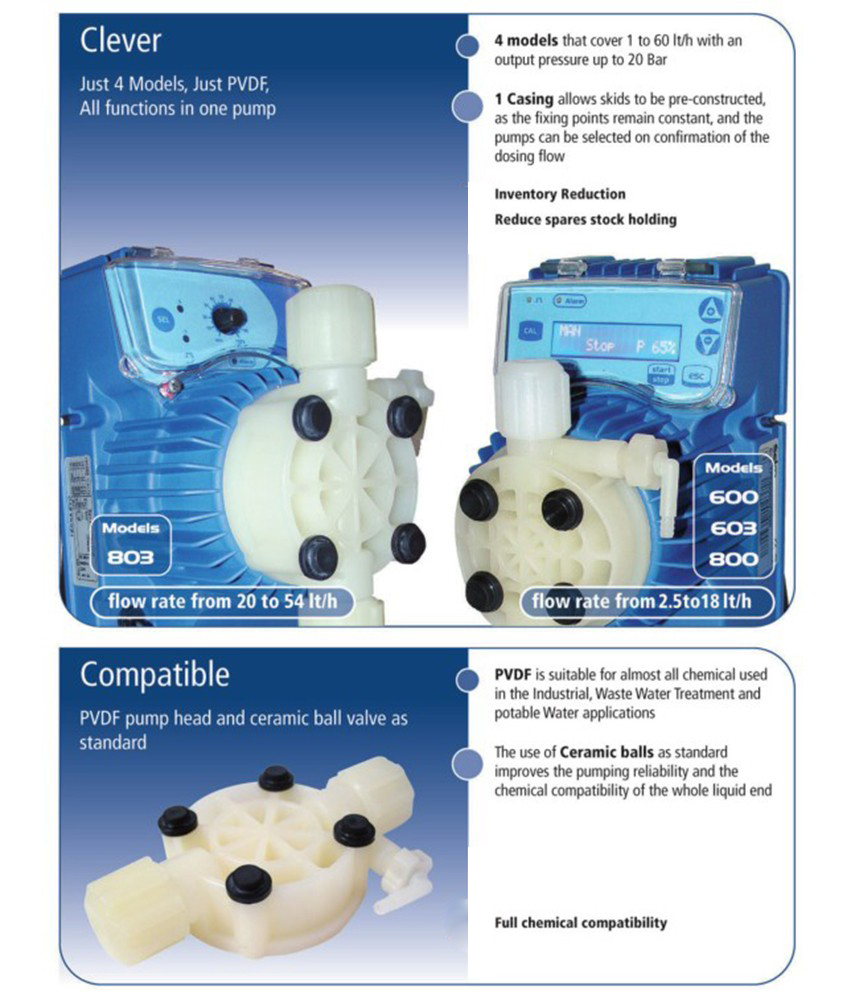

| Compatible PVDF pump head and ceramic ball valve asstandard.PVDF is suitable for almost all chemical usedin the Industrial,Waste Water Treatment andpotable Water applications.The use of Ceramic balls as standardimproves the pumping reliability and thechemical compatibility of the whole liquid end.
ReliableThe advanced design and manufacturingprocess allows the diaphragm to have aunique life expectancy.Made of pure solid PTFE, the diaphragm iscompatible with most chemicals.The diaphragm has been tested over a periodof 5 years giving superior results.Routine diaphragm replacement is no longer arequirement.
|
Technical Features
1. Casing made of PP reinforcedwith glass fibre.
2. IP 65 rated.
3. PTFE diaphragm.
4. Level control input.
5. Priming valve.
6. Complete standard inslalltionkit composed by: foot fiter andinjection valve, PVC suctiontube, PE delivery tube andfixing bracket.

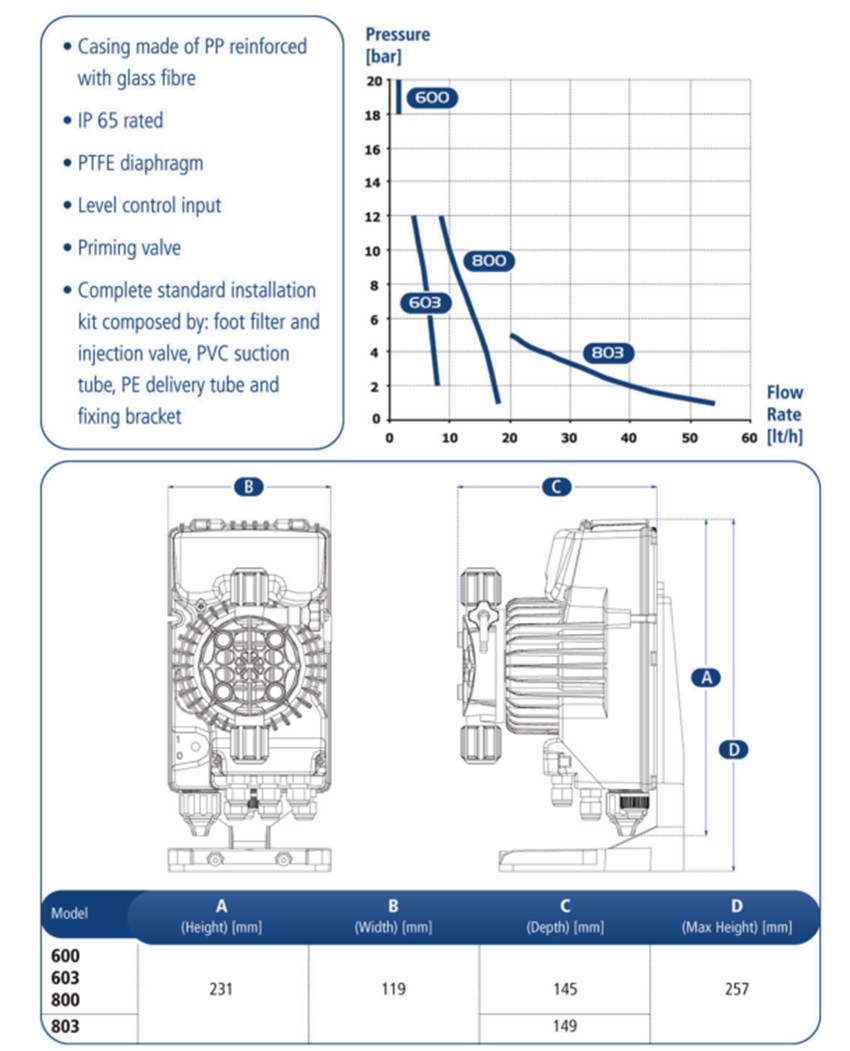

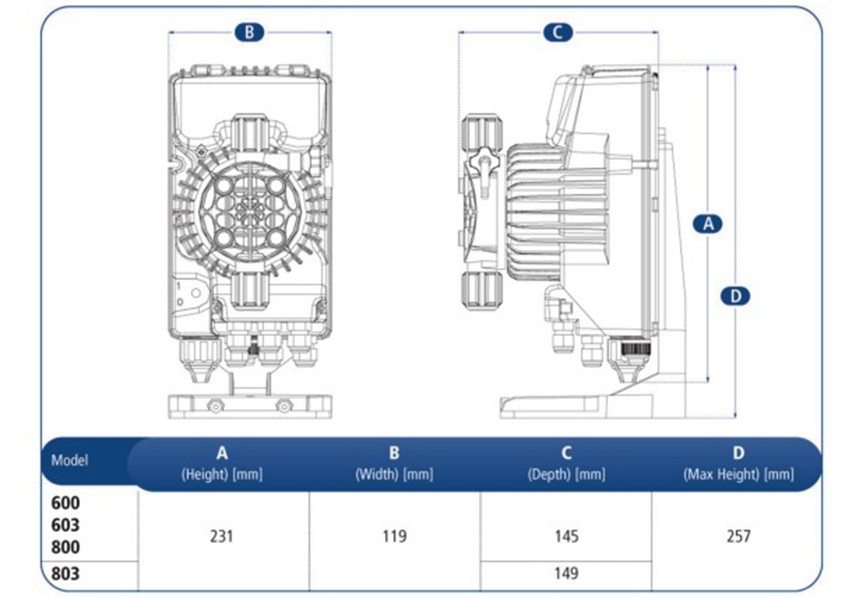

Household Pump Product Parameters
Household Pump Product Parameters
Exhibition
Our Advantage
Our Factory
Advanced production equipment |
|
Professional and technical personnel
|
Adequate product inventory |
|
Rich industry experience |
