Pressure Gauge

The main products are: Industry and Household RO system ,FRP tank,RO membrane,RO membrane vessel,RUNXIN valve, Household water purifier, water filter cartridge,water filter housing ,UV sterilizer, ozone generator.


Availability:



Inquire

Model:
AMD-PG
Brand:
Amanda

Product Description

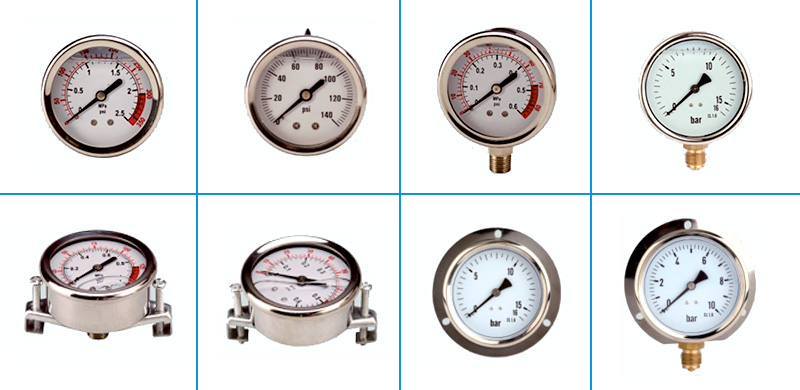

Product Images

Pressure Gauge (5)

Pressure Gauge (6)

Product Parameters

Pressure Gauge

Diameter	Model Installiation	Measure Range	Screw Thread	Case Material	Accuracy
1 1/2"	Y-40 Bootom connection	0~15Psi 0~3500Psi	1/8" NPT BSPT BSP M10×1	Steel SS 304 Plastic	±2.5
	Y-40Z Back connection
	Y-40ZT Back connection with border			Steel SS 304
2"	Y-50 Bootom connection	0~15Psi 0~3500Psi	1/8" 1/4" NPT BSPT BSP M14×1.5	Steel SS 304 Plastic	±2.5
	Y-50Z Back connection
	Y-50ZT Back connection with border			Steel SS 304
2" 1/2"	Y-60 Bootom connection	0~15Psi 0~6000Psi	1/8" 1/4" NPT BSPT BSP M14×1.5	Steel SS 304 Plastic	±2.5
	Y-60Z Back connection
	Y-60ZT Back connection with border			Steel SS 304
3"	Y-75 Bootom connection	0~15Psi 0~3500Psi	4/8" 3/8" NPT BSPT BSP M14×1.5	Steel SS 304 Plastic	±2.5
	Y-75Z Back connection
	Y-75ZT Back connection with border			Steel SS 304
4"	Y-100 Bootom connection	0~15Psi 0~8500Psi	3/8" 1/2" NPT BSPT BSP M20×1.5	Steel SS 304 Plastic	±1.6
	Y-100Z Back connection
	Y-100ZT Back connection with border			Steel SS 304
6"	Y-150 Bootom connection	0~15Psi 0~8500Psi	3/8" 1/2" NPT BSPT BSP M20×1.5	Steel SS 304 Plastic	±1.6
	Y-150Z Back connection
	Y-150ZT Back connection with border			Steel SS 304
